1 Stable 04 HD Transmission for Smooth Flights
The six-antenna array significantly improves video transmission. Enjoy a stable 1080p/60fps live feed 𝘂𝗽 𝘁𝗼 𝟮𝟬 𝗸𝗺, ensuring smooth flights with clear and reliable transmission.
2 𝗦𝘁𝘂𝗻𝗻𝗶𝗻𝗴 𝟰𝟴𝗠𝗣 𝗜𝗺𝗮𝗴𝗲𝘀 𝗳𝗼𝗿 𝗛𝗶𝗴𝗵-𝗤𝘂𝗮𝗹𝗶𝘁𝘆 𝗖𝗿𝗼𝗽𝘀
Air 3 captures impressive 48MP images, allowing for remarkable crops. Even quickly snapped travel photos can be cropped to reveal surprising details.
3 𝗖𝗮𝗽𝘁𝘂𝗿𝗲 𝗕𝗿𝗲𝗮𝘁𝗵𝘁𝗮𝗸𝗶𝗻𝗴, 𝗜𝗺𝗺𝗲𝗿𝘀𝗶𝘃𝗲 𝗦𝗵𝗼𝘁𝘀

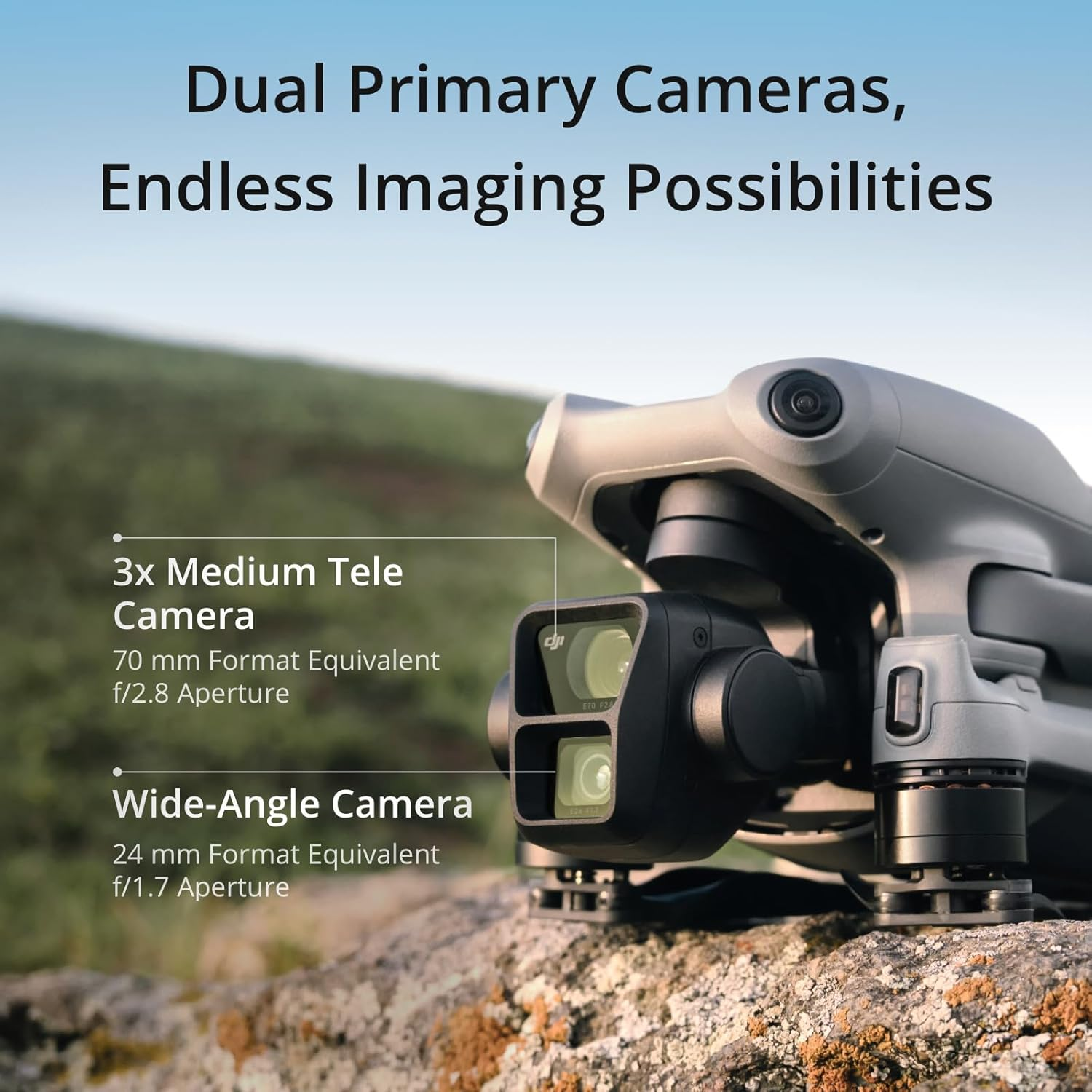

DJI Air 3's dual cameras offer creative focal-length options ideal for travel photography. Show off stunning environments and tell captivating stories through your lens.
Next-Gen Smart RTH With Enhanced Precision
DJI Air 3S can memorize flight paths in well-lit environments for safe returns, even when taking off from areas without satellite signals.
45-Min Flight Time
With up to 45 minutes of flight time, Air 3S gives you enough time to scout locations, compose, nail your shots, and do it all over again and again.
70mm Medium Tele Camera
48MP 1/1.3" CMOS sensor, matching the primary camera's video specs and color modes while offering 3x optical zoom for expressive portrait shots.
Nightscape Omnidirectional Obstacle Sensing
Forward-facing LiDAR, downward infrared ToF sensor, and three pairs of vision sensors allow nightscape to detect and avoid obstacles.
Dual-Camera 4K/60fps HDR Video
Uses H.265 encoding while supporting 4K/60fps HDR video, 4K/120fps video, and 10-bit D-Log M color mode.
20km Video Transmission
DJI O4 video transmission provides 10-bit video transmission at 1080p/60fps for distances up to 20 km, offering smother live feeds.
Learn with
DJI Air 3 Video
Master your drone skills with our expert tutorials.
Technical Parameters
Aircraft
- Takeoff Weight: 720 g
- Folded (without propellers): 207×100.5×91.1 mm (L×W×H)
Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H)
- Max Ascent Speed: 10 m/s
- Max Descent Speed: 10 m/s
- Max Horizontal Speed (at sea level, no wind):
21 m/s (
19 m/s in EU regions.)
- Max Takeoff Altitude:
6000 m
- Max Flight Time:
46 minutes (
Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.)
- Max Hovering Time:
42 minutes (
Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.)
- Max Flight Distance:
32 km
- Max Wind Speed Resistance: 12 m/s
- Max Pitch Angle:
35°
- Operating Temperature:
-10° to 40° C (14° to 104° F)
- Global Navigation Satellite System:
GPS + Galileo + BeiDou
- Hovering Accuracy Range Vertical: ±0.1 m (with vision positioning) ±0.5 m (with GNSS positioning) Horizontal: ±0.3 m (with vision positioning) ±0.5 m (with high-precision positioning system)
- Internal Storage:
8 GB
- Class:
C1 (EU)
Camera

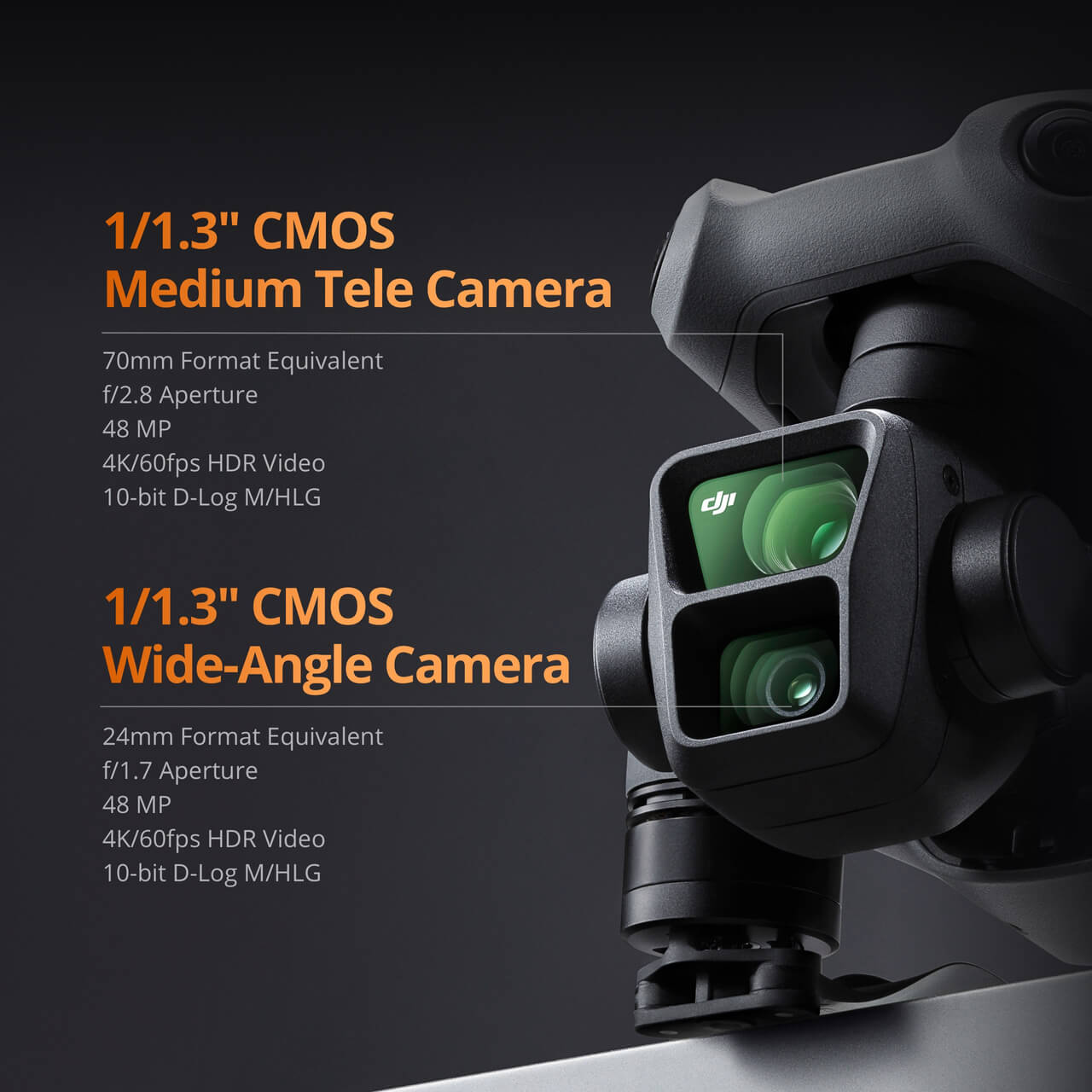

- Image Sensor:
Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
- Lens:
Wide-Angle Camera
FOV: 82°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞
Medium Tele Camera
FOV: 35°
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞
- ISO Range:
Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)
100-6400 (12 MP)
100-3200 (48 MP)
- Shutter Speed:
Wide-Angle Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
Medium Tele Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
- Max Image Size:
Wide-Angle Camera: 8064×6048
Medium Tele Camera: 8064×6048
- Still Photography Modes:
Wide-Angle Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s
Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s
- Photo Format:
JPEG/DNG (RAW)
- Video Resolution:
Wide-Angle Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps
Medium Tele Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps
* Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps only supports H.265.
- Video Format:
MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
- Max Video Bitrate:
H.264/H.265: 150 Mbps
- Supported File System:
exFAT
- Color Mode and Sampling Method:
Wide-Angle Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)
Medium Tele Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)
- Digital Zoom:
Wide-Angle Camera: 1-3x
Medium Tele Camera: 3-9x
Gimbal
- Stabilization:
3-axis mechanical gimbal (tilt, roll, pan)
- Mechanical Range
Tilt: -135° to 70°
Roll: -50° to 50°
Pan: -27° to 27°
- Controllable Range Tilt: -90° to 60° Pan: -5° to 5°
- Angular Vibration Range ±0.0037°
- Max Control Speed (tilt)
100°/s
Sensing
- Sensing Type: Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
- Forward:
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15 m/s
FOV: Horizontal 90°, Vertical 72°
- Backward:
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°
- Lateral:
Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°
- Downward:
Measurement Range: 0.3-14 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 106°, Left and Right 90°
- Upward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 72°, Left and Right 90°
- Operating Environment:
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)
- 3D Infrared Sensor
Measurement Range: 0.1-8 m (reflectivity > 10%)
FOV: Front and Back 60°, Left and Right 60°
Video Transmission
- Video Transmission System
O4
- Live View Quality:
Remote Controller:
1080p/30fps, 1080p/60fps
- Operating Frequency:
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.
- Transmitter Power (EIRP):
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
- Max Transmission Distance (unobstructed, free of interference)
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km (
Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.)
- Max Transmission Distance (unobstructed, with interference)
Strong Interference: urban landscape, approx. 1.5-4 km
Medium Interference: suburban landscape, approx. 4-10 km
Low Interference: suburb/seaside, approx. 10-20 km (
Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.)
- Max Transmission Distance (obstructed, with interference):
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km (
Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.)
- Max Download Speed
O4:
10 MB/s (with DJI RC-N2 Remote Controller)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s*(
* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.)
- Antenna
6 antennas, 2T4R
- Lowest Latency
Aircraft + Remote Controller: approx. 120 ms
Depending on the actual environment and mobile device.
Wi-Fi
- Protocol: 802.11 a/b/g/n/ac
- Operating Frequency:
2.400-2.4835 GHz
5.725-5.850 GHz
- Transmitter Power (EIRP):
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
Bluetooth
- Protocol
Bluetooth 5.2
- Transmitter Power (EIRP)
< 10 dBm
- Operating Frequency
2.400-2.4835 GHz
Battery
- Capacity:
4241 mAh
- Nominal Voltage
14.76 V
- Max Charging Voltage 17 V
- Weight
Approx. 267 g
- Type
Li-ion 4S
- Energy
62.6 Wh
- Charging Temperature:
5° to 40° C (41° to 104° F)
Charging Time: Approx. 80 minutes (with DJI 65W Portable Charger)Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)
Charger
- Input: DJI 65W Portable Charger: 100-240 V (AC), 50-60 Hz, 2 A DJI 100W USB-C Power Adapter: 100-240 V (AC), 50-60 Hz, 2.5 A
- Output:
DJI 65W Portable Charger:
USB-C
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A
5 V, 2 A
DJI 100W USB-C Power Adapter:
Max 100 W (total) (
When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.)
- Rated Power:
DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W
Battery Charging Hub
- Input USB-C: 5-20 V, max 5 A
- Output (power accumulation)
Battery Port: 12-17 V, 3.5 A
- Output (USB)
USB-C:
5 V, 3 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 4.1 A
- Output (charging)
Battery Port: 12-17 V, max 5 A
- Charging Type
Three batteries charged in sequence.
- Compatibility
DJI Air 3 Intelligent Flight Battery
Car Charger
- Input:
Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC)
- Output:
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
- Rated Power:
65 W
- Charging Temperature
5° to 40° C (41° to 104° F)
Storage
Recommended microSD Cards:
SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC
Lexar 1066x 64GB V30 U3 A2 microSDXC
Lexar 1066x 128GB V30 U3 A2 microSDXC
Lexar 1066x 256GB V30 U3 A2 microSDXC
Lexar 1066x 512GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC
Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC
Samsung EVO Plus 512GB V30 U3 A2 microSDXC

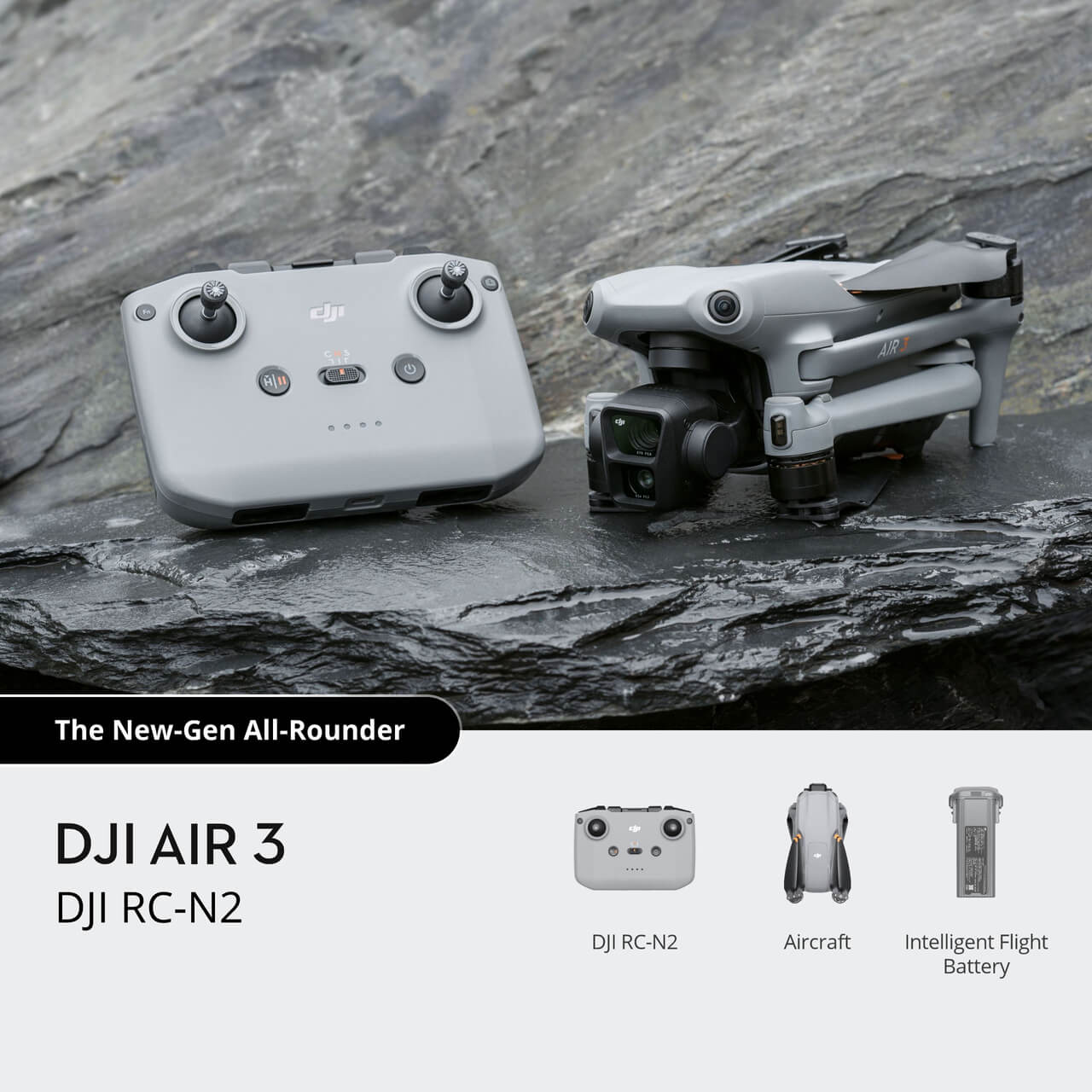

DJI RC-N2 Remote Controller
- Model:
RC151
- Max Operating Time:
Without charging any mobile device: 6 hours
When charging a mobile device: 3.5 hours
- Max Supported Mobile Device Size:
180×86×10 mm (L×W×H)
- Operating Temperature:
-10° to 40° C (14° to 104° F)
- Charging Temperature:
5° to 40° C (41° to 104° F)
- Charging Type
It is recommended to use a 5V/2A charger.
- Charging Time
2.5 hours
- Charging Type
It is recommended to use a 5V/2A charger.
- Battery Capacity
18.72 Wh (3.6 V, 2600 mAh × 2)
- Type:
18650 Li-ion
- Dimensions:
104.22×149.95×45.25 mm (L×W×H)
- Weight
375 g
- Supported Mobile Device Port Type
Lightning, USB-C, Micro-USB (
Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately.)
- Video Transmission Operating Frequency:
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
- Video Transmission Transmitter Power (EIRP):
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)
Others
Guaranteed software updates until
2026/12/31
Let’s Answer Your Questions
Compared with DJI Air 2S, what are the main upgrades of DJI Air 3?
DJI Air 3 has improved the camera system, video transmission system, vision sensing system, flight time, and intelligent features. Details are as follows: A 1/1.3-inch CMOS 70mm medium tele camera is added. The
video transmission system is upgraded to the next-gen O4 HD video transmission system. The drone is equipped with an omnidirectional vision sensing system and supports Advanced Pilot Assistance Systems (APAS) 5.0. The max hovering time is 42 minutes*, and the max flight time is 46 minutes**. The drone supports Waypoint Flight, Advanced RTH, Cruise Control, QuickTransfer, and other intelligent functions.
*
Measured with DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.
** Measured with DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.
What is the certification level of DJI Air 3 in Europe?
DJI Air 3 is C1 certified by the European Union Aviation Safety Agency (EASA).
Does DJI Air 3 support the DJI Goggles Series and the DJI Motion Controller Series?

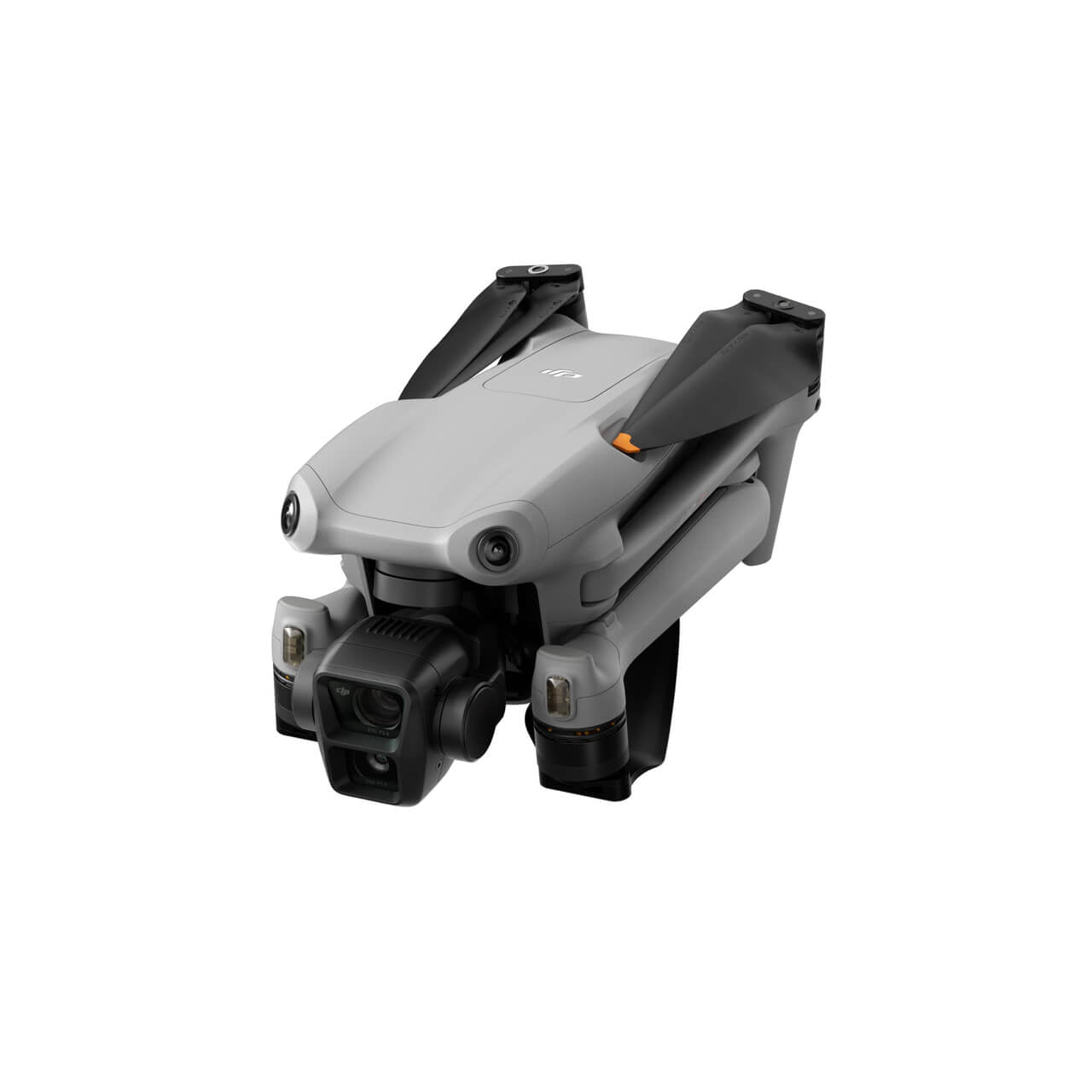

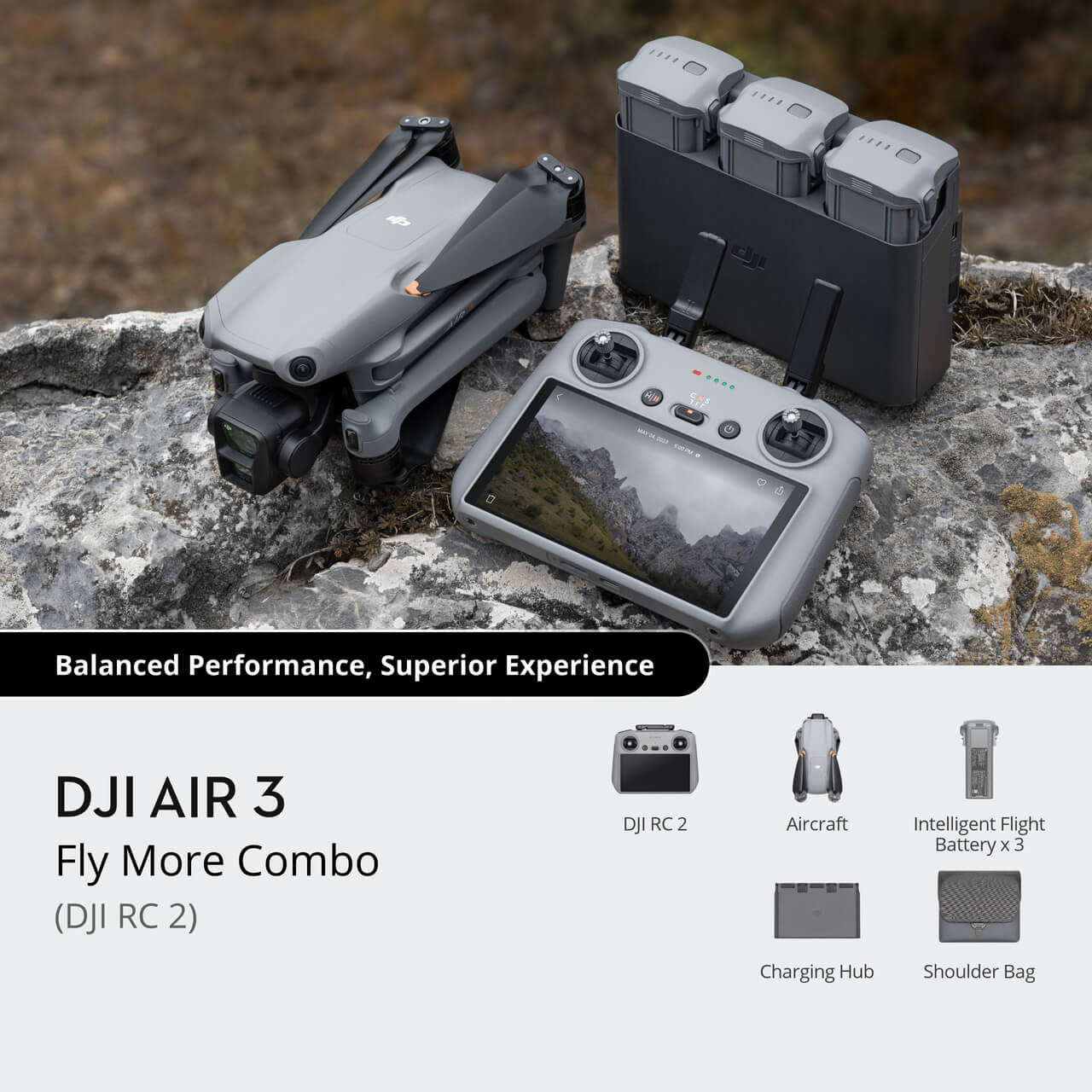

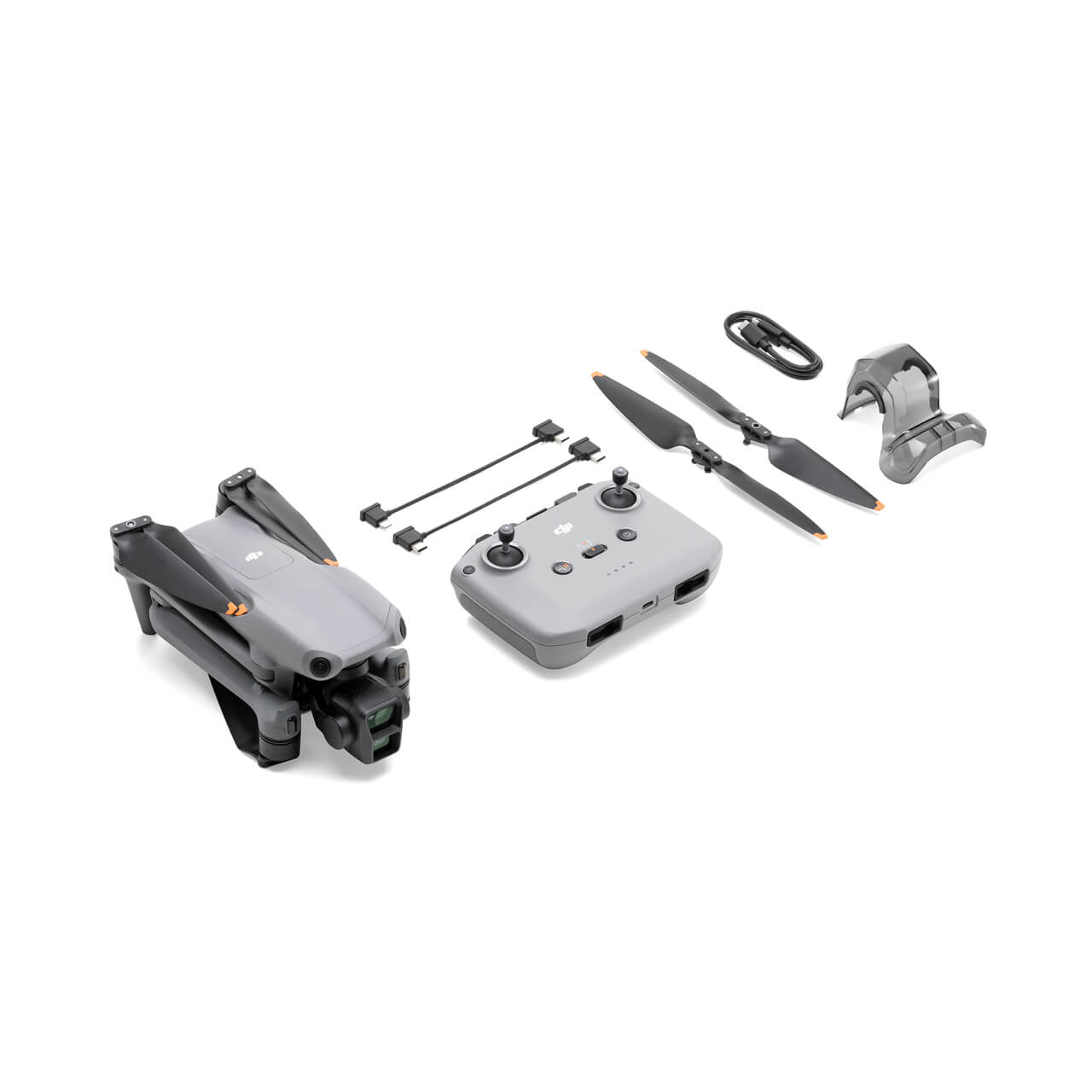

DJI Air 3 is only compatible with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3 and DJI RC Motion 2, DJI RC Motion 3
